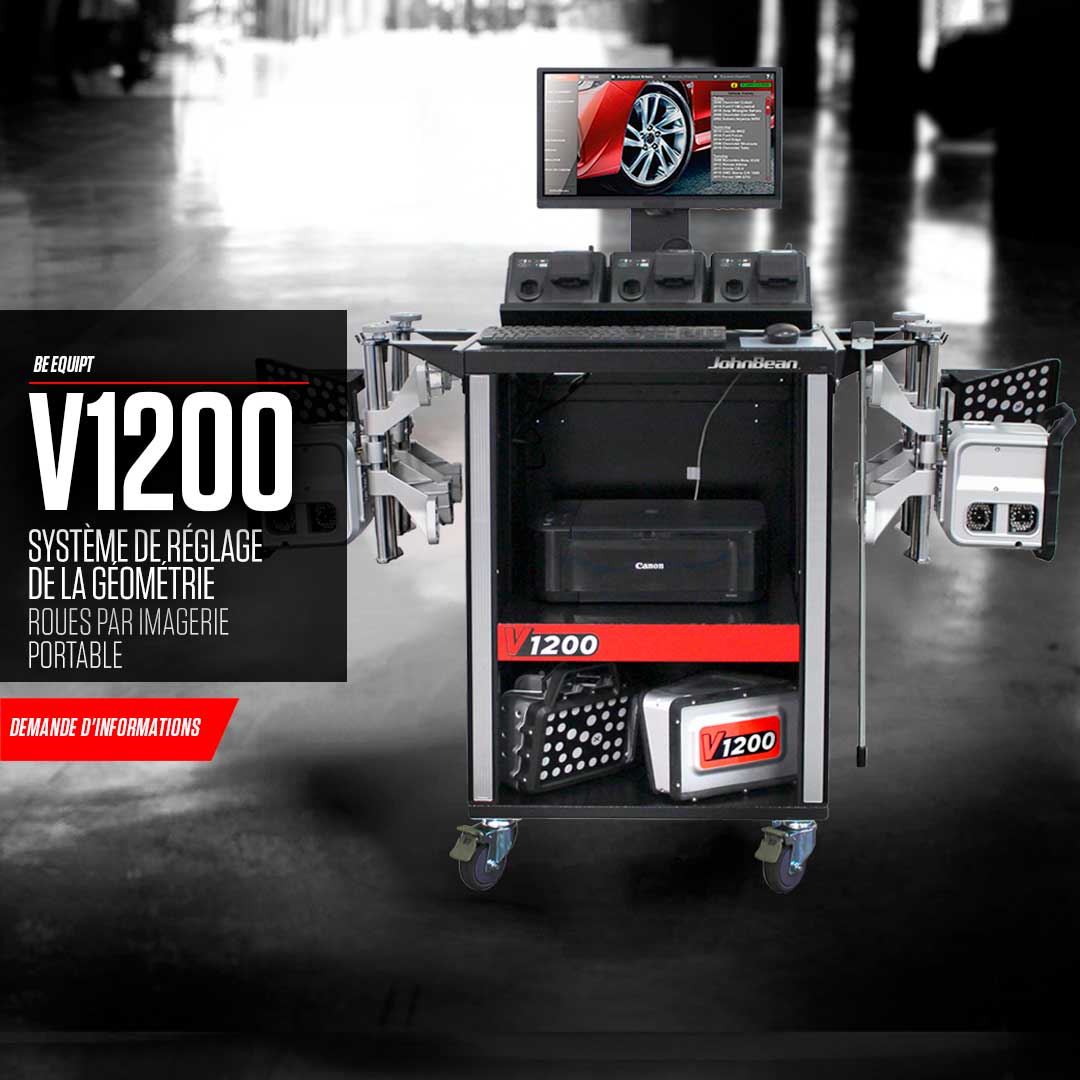

Portable Imaging Wheel Alignment System V1200

Break the barriers of your alignment space with the John Bean® V1200 wheel aligner, featuring a compact mobile solution that allows flexibility to perform wheel alignments in a smaller area. The V1200 comes with the same productivity-boosting software and features found in our conventional cross-beam alignment systems.

The V1200 lift-mounted reference pods, XD wheel targets and camera pods provide shops with a versatile alignment solution for precision service in a limited space. Our unique quick-release clamps attach to nearly any type of lift and the V1200 requires no room in front of the lift to perform services. For greater flexibility, a secondary screen option allows operators to use a compatible tablet while performing adjustments under the vehicle. Our advanced software can assist even the least experienced technician through the alignment procedure, providing a dependable, accurate, and reliable wheel alignment service.

Compact and complete, the V1200 allows you to keep the alignment business in-house and boost your profits.

Features

ON-RACK AND ON-CAR

XD camera pods utilize quick-release hardware that easily attaches to nearly any style of lift for the ultimate flexibility.

SMALL FOOTPRINT

Maximize shop floor space with a small console that takes up minimal shop space with easy storage for the printer and targets.

COMPLETELY MOBILE

Easily move the V1200 to anywhere in your shop with a console that doubles as a viewing and charging station.

DURABLE CAMERA PODS

Built to stand the rigors of a working shop, these camera pods don’t require special handling and can handle a hard day of work.

VIDEO: SEE IT IN ACTION

ADDITIONAL FEATURES

RECHARGEABLE BATTERIES

On-cart, integrated battery charger stores the batteries while not in use, ensuring they remain charged and ready.

AC700 CLAMPS

Lightweight, durable AC700 wheel clamps fit rims from 11″-22″.

ADJUSTMENTS

MEASUREMENTS

DOWNLOADS

TECH SPECS

Part Number

EEWAEU551H1

Wheel Diameter (AC700)

11″-22″ | 28-56cm

Track Width

48″-96″ | 122-244cm

Wheelbase

60″-180″ | 152-457cm

Power Supply

110-240V 50/60Hz

ACCESSORIES

STANDARD

2x-Wheel-Chock
2x Wheel Chock
Steering Wheel Holder
Brake Pedal Depressor
Printer

OPTIONAL

VIN Scanner
4" Extension Kit
Low Profile Tire Adapter
2" Wheel Hub Extension
AC700 Wheel Clamp Floor Stand
Wheel Clamp Floor Stand Mobility Kit
Pod Floor Mount Kit
Console Docking kit
