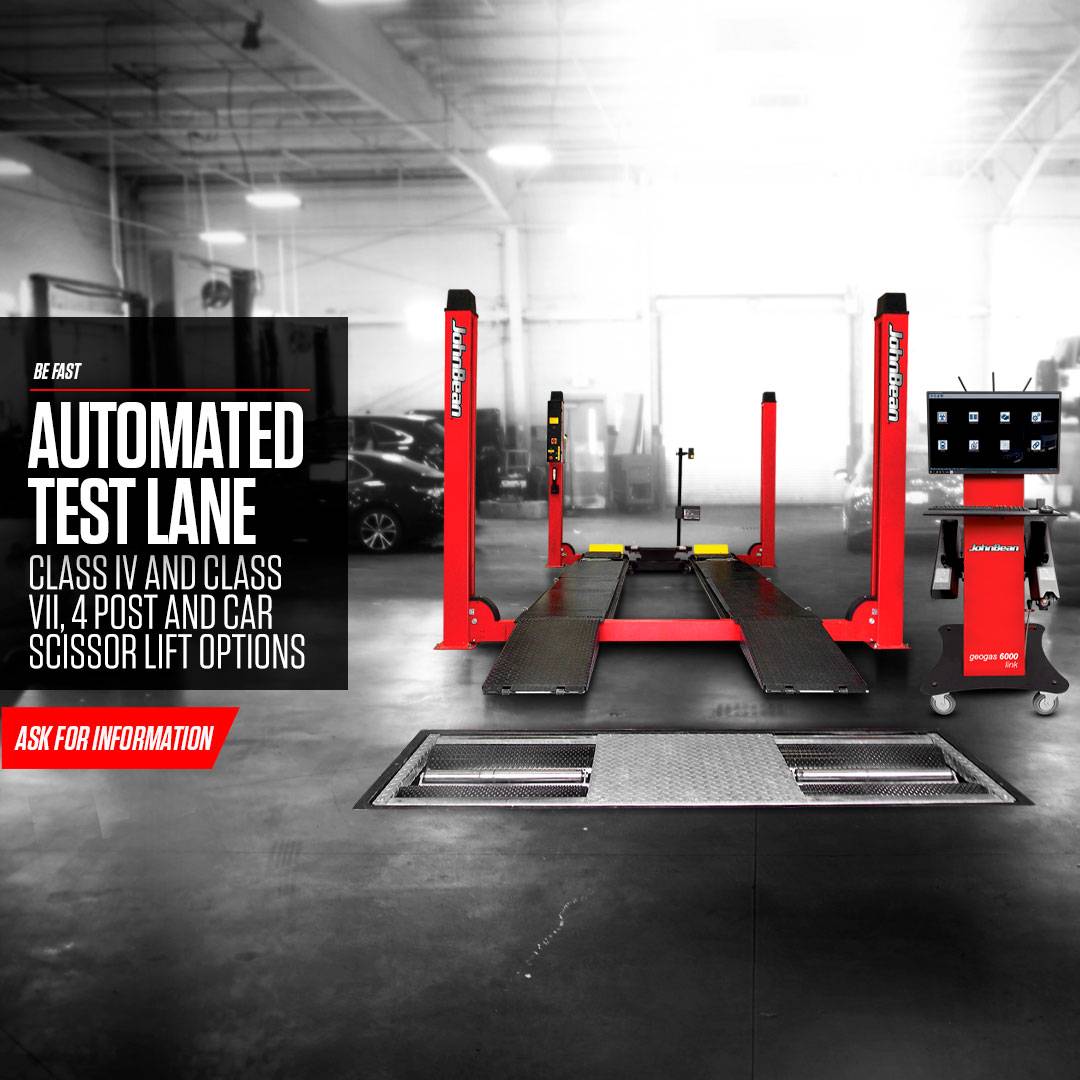

Automated Test Lane CLASS IV AND CLASS VII, 4 POST AND CAR SCISSOR LIFT OPTIONS
John Bean® ATL is an industry-leading, DVSA-approved automated test lane system for one-person operated MOT testing for class IV and VII and class I, II, III with an optional adaptor accessory. At the heart of the John Bean ATL is the geogas 6000 link, with a large 27-inch monitor providing clear visible information in your workshop.
Using Windows-based, icon-driven software, the John Bean ATL requires minimum training for the test to be completed. Test procedures can be performed in fully automatic mode or operated manually. The geogas 6000 link includes a wireless smoke head (Class A\Class B approved), plus we have extended the capability of our emissions range to now include a new wireless EOBD RPM, oil temperature trigger device for diesel testing.
This device allows you to measure the vehicle’s RPM and oil temperature by simply plugging the adaptor into the EOBD port in the vehicle and the readings will be wirelessly transmitted back to the workstation.
This new method, which has been officially approved, allows you to trigger the smoke head using EOBD RPM which will then give you official smoke readings. The brake rollers have a fully galvanised steel chassis for maximum protection against corrosion to be installed into a dedicated recess with a 10 year warranty.
The unique dimpled rollers provide better grip in wet tyre conditions ensuring accurate brake testing and diagnosis, and come with a 10-year warranty to give you complete peace of mind. The 4 post car lift comes with rear slip plates and turnplates built in as standard, along with a long 5.2m or 5.7m platform length.
Features

geogas 6000 LINK EMISSIONS ANALYSER WITH LARGE SCREEN

LIFT WITH INTEGRAL PLAY DETECTOR

BEARING RADIUS PLATES

JACKING BEAM
ADDITIONAL FEATURES

ROLLER BRAKE TESTER, WITH EASY-TO-USE PC SOFTWARE

BRAKE ROLLER COVER PLATES

RAIL MOUNTED HEADLIGHT BEAM SETTER

CAN EASILY BE UPGRADED TO COVER CLASS I AND II TESTS

TECH SPECS
Lift | 4000kg 4P | 5000kg 4P | 3500kg Scissor | 5000kg Scissor |
Platform width | 600mm | 600mm | 665mm | 700mm |
Platform length | 5200mm | 5700mm | 4600mm | 5500mm |
Power | 3kw | 3kw | 2.6kw | 2.6kw |
Voltage | 415v | 415v | 400V – (3 phase); 415v | 400V – (3 phase); 415v |
Platform height when lowered | 190mm | 190mm | 280mm | 280mm |
Platform max height | 1750mm | 1750mm | 1805mm | 1805mm |
Overall length | 5250mm | 5750mm | 4790mm | 5710mm |
Overall width | 3330mm | 3330mm | 2170mm | 2240mm |
Overall height | 2340mm | 2340mm | 1805mm | 1805mm |
