Sol 3000 Two-Post Automotive Lift

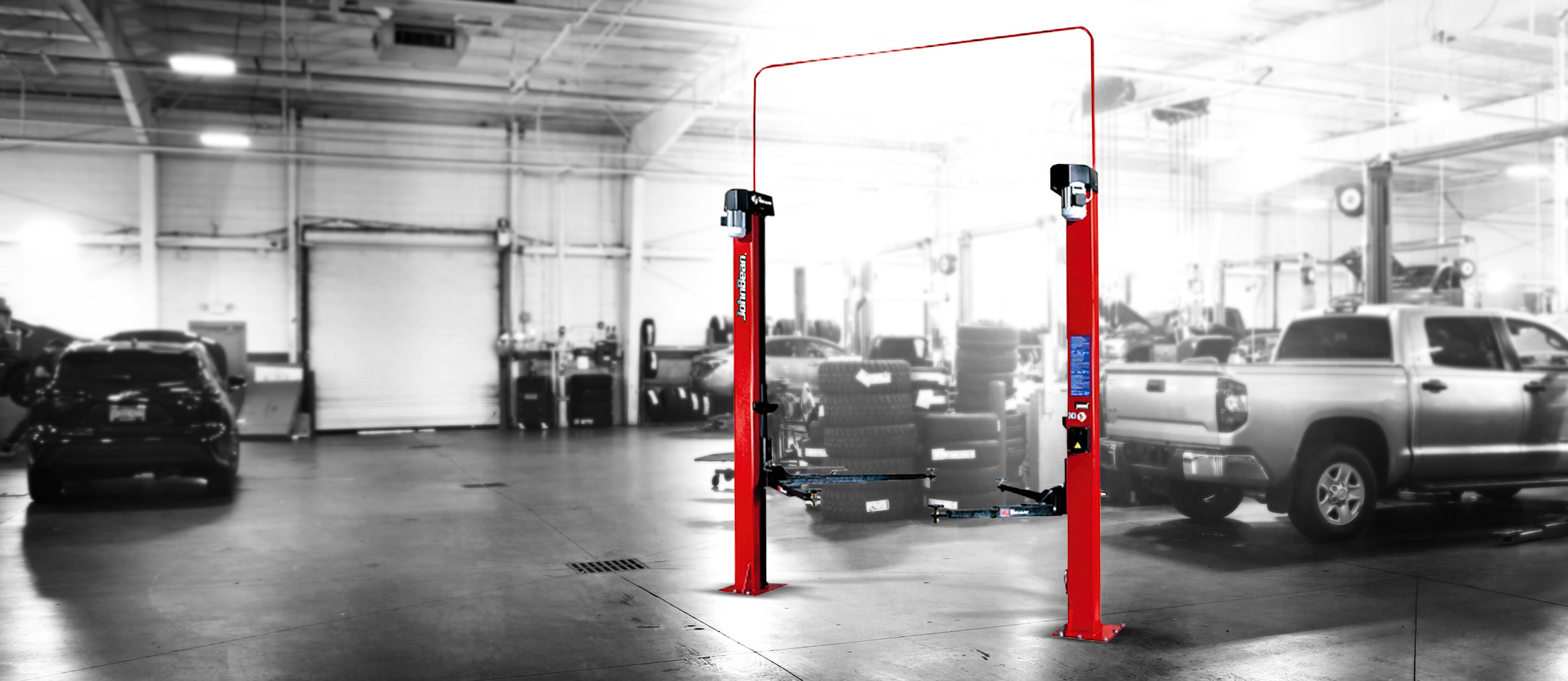

Designed to lift vehicles up to 3,000 kilograms, the John Bean® Sol 3000 is a standard two-post lift without a base frame and with mechanic synchronization control.

The asymmetric arms provide easy access to the vehicle lifting points and automatically lock in place for secure lifting. The 10cm minimum pick-up height of the low-profile arms can easily accommodate vehicles with a lower chassis. An automatic lubrication system incorporates lifting nuts made from wear-proof Nylatron®.

Features

CARRIAGE AND ARMS

Easy accommodation of lower chassis vehicles thanks to the 10cm minimum pick-up height.

AUTOMATIC LUBRICATION SYSTEM

Lifting nuts made of wear-proof Nylatron and automatic lubrication of lifting screws and safety nuts.

ARM LOCKS

The lifting arms lock in place automatically for secure and safe lifting.

CERTIFICATION

Our lifts are tested and certified by an independent third party in accordance with the CE requirements.

DOWNLOADS

TECH SPECS

Part Number

6027405

Lifting Capacity

6,600 lbs. | 3000 kg

Configuration

Asymmetric

Overall Width

88.5″ | 225cm

Overall Height

Standard: 138″-165″ | 350-420cm
Extended: N/A

Max Lifting Height

Surface Mount: 74″ | 189cm

Lifting Time

45 seconds

Power Requirements

400-415V 50Hz 3Ph

Air Supply Required

N/A

Shipping Weight

Standard: 1,378 lbs. | 625 kg
Extended: N/A

Minimum Recommended Bay Size WxL

Standard: 11’x19′ | 335x578cm
Extended: N/A

ACCESSORIES

OPTIONAL

Tool-Trays
Tool Trays
Supporting-Frame-(Base-Frame)
Supporting Frame (Base Frame)
Add-On-Pads
Add-On Pads
Energy-Station-Air-Supply-1-Phase-230-Volt
Energy Station Air Supply - 1 Phase 230 Volt
Rechargeable Lighting Kit
