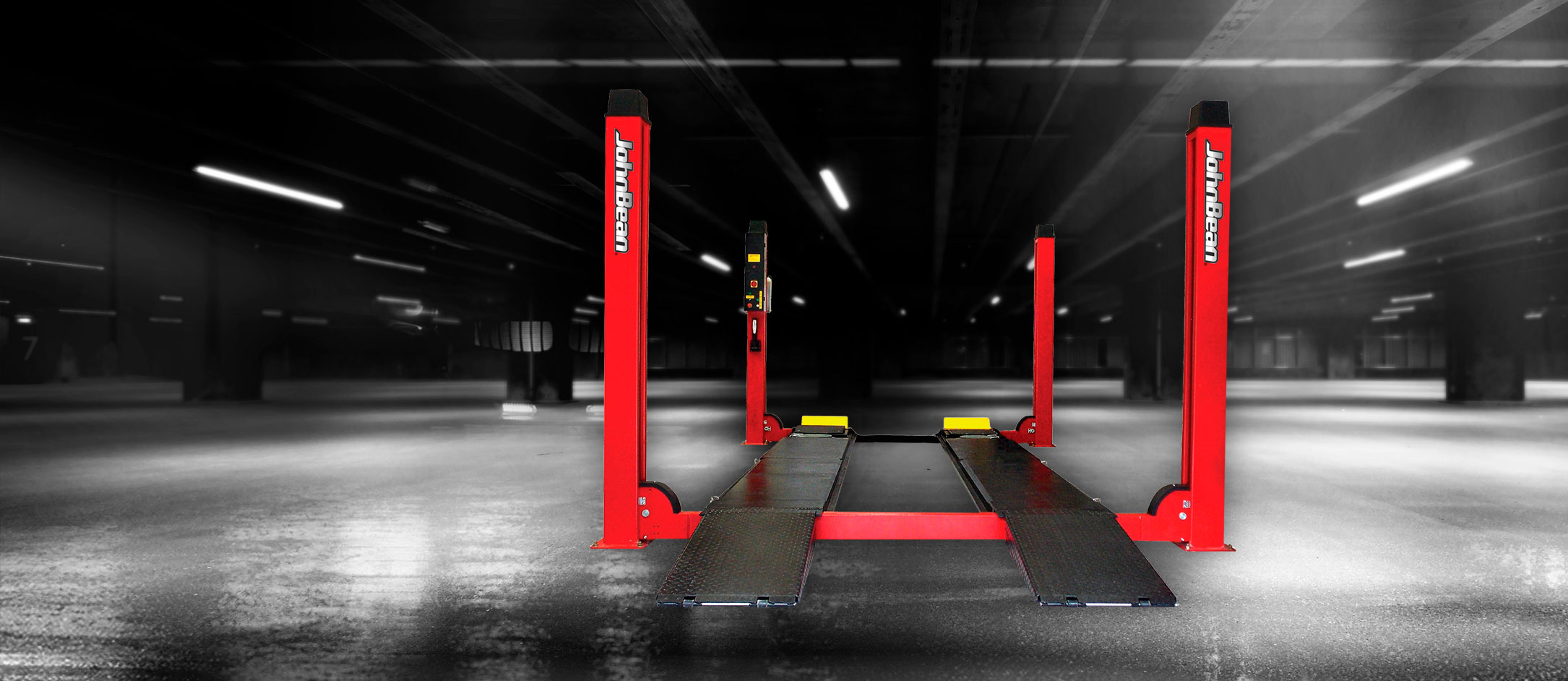

CLASS VII Dual Revenue Four-Post Alignment Lift

Keep pace with the changing customer requirements with the John Bean® dual revenue 4 post lift and its options for MOT, ATL and wheel alignment work.

The lift has three configuration options (MOT/Alignment; ATL/Alignment; Alignment only) and is the perfect combination of key features and value for your services. Whether you work on tiny commuter cars or large pickup trucks, the Four-Post Lift has the muscle you need to do the job quickly and easily.

Features

MOT/Alignment

Front turning plates and built-in rear slip plates

CONTROL UNIT

Simple and easy to understand, with emergency switch and comfort lowering, which allows the automatic release of the carriage from the safety lock when lowering the lift.

Rear slip plates

Integrated rear slip plates with high quality finish platform allowing for dual usage when carrying out wheel alignment

ADDITIONAL FEATURES

CABLE SYSTEM

The rugged brass pulleys ensure the long life of the lift.

OPTIONAL JACK

The rolling jack increases versatility with a 3,000-kilogram lifting capacity for additional work, such as brake service.

Turnplates

OPTIONAL TURNTABLES

The turntables are perfectly integrated into the runways and can be placed in three different positions to support a wide range of wheelbases.

CERTIFICATION

Our lifts are tested and certified by an independent third party in accordance with the CE requirements.

DOWNLOADS

TECH SPECS

Part Number

CLASS IV

Lifting Capacity

1300kg per wheel

Overall Width

3310mm

Max Lifting Height

1830mm

Power Requirements

380v 3P + Earth 20A 50Hz

Air Supply Required

N/A

Shipping Weight

Standard: 3,700 lbs. | 1,695 kg
Extended: N/A

Minimum Recommended Bay Size WxL

Standard: 18’x31′ | 550x950cm
Extended: N/A

ACCESSORIES

STANDARD

Stackable-Interlocking-Pads-1.7'-44mm
Stackable Interlocking Pads 1.7" | 44mm

OPTIONAL

Low-Profile-Ramps
Low Profile Ramps
Flush-Mount-Kit
Flush Mount Kit
Rechargeable Lighting Kit
