J4P14 14K Four-Post Alignment Lift

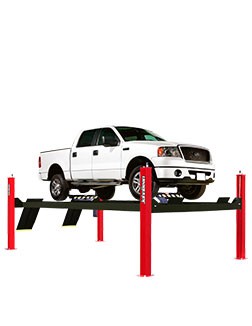

The John Bean® J4P14 Four-Post Lift is a long-lasting, dependable lift with 14,000 pounds of lifting capacity to accommodate a wide range of vehicles for the budget-minded service center.

Available in standard or extended length, the John Bean J4P14 is loaded with features you would expect to pay more for, like louvered approach ramps, solid piece column construction, automatic wheel stops, and the highest rise in the industry. With optional rolling jacks, a bolt-on alignment kit, oil drain pan, the J4P14 will accommodate just about anything that comes in for service.

VERSIONS

Extended – J4P14XFX

Features

LOUVERED APPROACH RAMPS

The louvered approach ramps provide positive traction for vehicle loading.

EXTRA SPACE UNDERNEATH

The 78-inch rise height allows technicians to easily work and move freely under the vehicle.

OPTIONAL RACK CONVERSION KIT

An optional bolt-on alignment kit converts this general service lift into an alignment lift.

DOWNLOADS

TECH SPECS

Part Number

EELR543A: Standard

EELR559A: Extended

Lifting Capacity

14,000 lbs.  |  6,350 kg

Configuration

Closed Front

Overall Width

131″  |  332cm

Overall Height

Standard:

Max Lifting Height

Surface Mount: 78″  |198cm

Flush Mount:

Lifting Time

74 seconds

Power Requirements

2HP 208-230V 60 Hz 1Ph 30A

Air Supply Required

90-120 PSI  |  6-8 BAR

Shipping Weight

Standard:

Minimum Recommended Bay Size WxL

Standard: 12’x24′  |  366x732cm

Extended: 12′ x 26′  |  366 x 793cm
