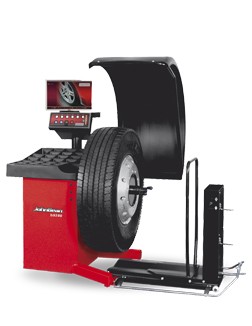

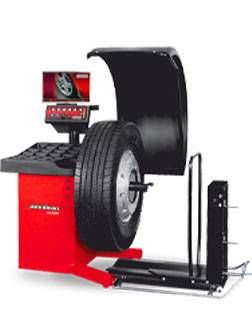

B9280 Heavy-Duty Wheel Balancer
Designed for maximum efficiency, the John Bean® B9280 is a heavy-duty wheel balancer ideal for shops short on space.
Built to maximise productivity, reduce technician fatigue, and minimise the chance for injury, the B9280 is equipped with a pneumatic wheel lift that helps technicians easily move heavy wheels into position. The B9280 comes with a keyboard and an elevated 19″ TFT monitor to operate the user-friendly interface and includes a weight tray with 27 compartments for convenient storage and easy access to the proper balance weight for the job.
The B9280 from John Bean is a precise and reliable heavy-duty wheel balancer equipped with a full set of productivity-boosting features.
Features
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/Image20221018152229.png)
VIRTUAL PLANE IMAGING (VPI)
This patented technology, insensitive to ambient conditions, creates a virtual plane of the wheel between the sensors, eliminating external influences such as temperature variation or vibrations, ensuring the most accurate balancing results.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Raised-Monitor-and-Touchpad.jpg)
RAISED MONITOR AND TOUCHPAD (HD)
Raised monitor and touchpad for convenient operational control.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/SEMI-AUTOMATIC-DATA-ENTRY-1.jpg)
SEMI-AUTOMATIC PARAMETER ENTRY
Hand-operated gauge arm automatically detects and inputs rim offset and diameter.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Alloy-Mode-Selection-1.jpg)
ALLOY MODE SELECTION
A series of five different positions for customised weight placement, ideal for the wide variety of wheel designs on the market today.
ADDITIONAL FEATURES
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Gauge-Arm-with-Weight-Clamp-1.jpg)
GAUGE ARM WITH WEIGHT CLAMP
The gauge arm guides the technician to the correct position inside the rim and is equipped with a patented wheel weight clamp to hold the weight in the correct position during weight placement.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/09/SPLIT-WEIGHT-MODE.jpg)
SPLIT WEIGHT MODE
This feature allows for accurate balancing with easy-to-follow manual procedures to hide the weights behind the spokes, preserving the wheel’s visual presentation.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/PNEUMATIC-LOADING-DEVICE-1.jpg)
PNEUMATIC LOADING DEVICE
This lift helps facilitate the clamping of heavy truck wheels and offers ample storage space for cones, centring stars, and wing nuts.
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/B9280-action-pic.jpg)
TECH SPECS
Part Number
EEWB557AE1
Wheel Clamping
Quick Nut
SAPE Rim Diameter Range
8″-26″ | 20-66cm
SAPE Rim Width Range
2″-20″ | 20-51cm
Max Wheel Diameter
51″ | 130cm
Max Wheel Weight
550 lbs. | 250 kg
Power Supply
230V 50/60Hz
Dimensions HxWxL
79″x57″x54″ | 201x145x137cm
Net Weight
680 lbs. | 308 kg
ACCESSORIES
STANDARD
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/loading-system.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/11/4026401.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/calibration-weight-1.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/01/Weight-Pliers.jpg)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/QUICK-NUT-WHEEL-CLAMP-277x220-1.jpg)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/06/Truck-Rim-Width-Callipers.jpg)
OPTIONAL
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/truck-clamping-kit_4028764_-copy-1.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/cone-kit-for-truck_4029066.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/truck-centring-flange_30392.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/10/pre-centring-ring-for-light-truck-rims_30616.png)
![](https://www.johnbean.com/eu-en/wp-content/uploads/2022/09/remover.png)
