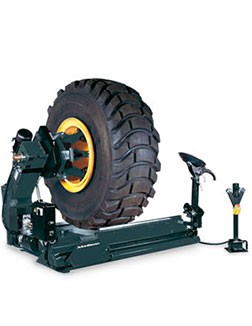

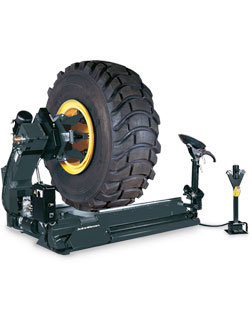

T5600 Heavy-Duty Tyre Changer

The T5600 works with large, heavy-duty commercial tyres to get the job done with ease.

Built to work on the heavy-duty truck, tractor, OTR wheel assemblies up to 90 inches in maximum diameter; clamping wheels of 44 inches or 56 inches diameter with optional extensions, the T5600 makes tough jobs easy. Keeping operator safety in mind, the T5600 includes a non-return valve on the chuck that prevents it from opening should the unit experience a sudden drop in hydraulic pressure. The mobile control unit allows a single technician to efficiently, and safely monitor all tyre-changing operations remotely.

Durable construction and smart features make the T5600 the perfect choice for tyre changing service on heavy-duty wheels and tyres.

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tyre changing operations.

NON-RETURN VALVE

A non-return valve prevents the chuck from opening in case of a sudden hydraulic pressure drop.

BEAD BREAKER

The bead breaker disk is equipped with a special tilting system to assist bead breaking and ensure the disk is in the optimum position.

CHUCK

The chuck is of solid design to accommodate wheels of up to 3,300 pounds (1,500 kg).

DOWNLOADS

TECH SPECS

Part Number

6027939

Max Rim Diameter

44″ | 112cm

Max Tyre Width

43″ | 110cm

Max Rim Width

Max Wheel Diameter

90″ | 230cm

Max Wheel Weight

3,300 lbs. | 1,500 kg

Power Supply

400 V 3ph 50 Hz

Dimensions HxWxD

42″x117″x81″ | 106x298x205cm

ACCESSORIES

STANDARD

Wave Plus Tyre Lever
Long Tyre Lever
Standard Tyre Lever: 20" | 50 cm
Mounting Clamp

OPTIONAL

Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Clamping Extensions 44"-56" | 111-142 cm
Tubeless Roller
