OEM TRUSTED EQUIPMENT: VOLVO

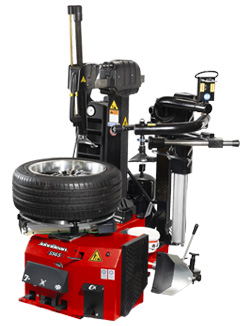

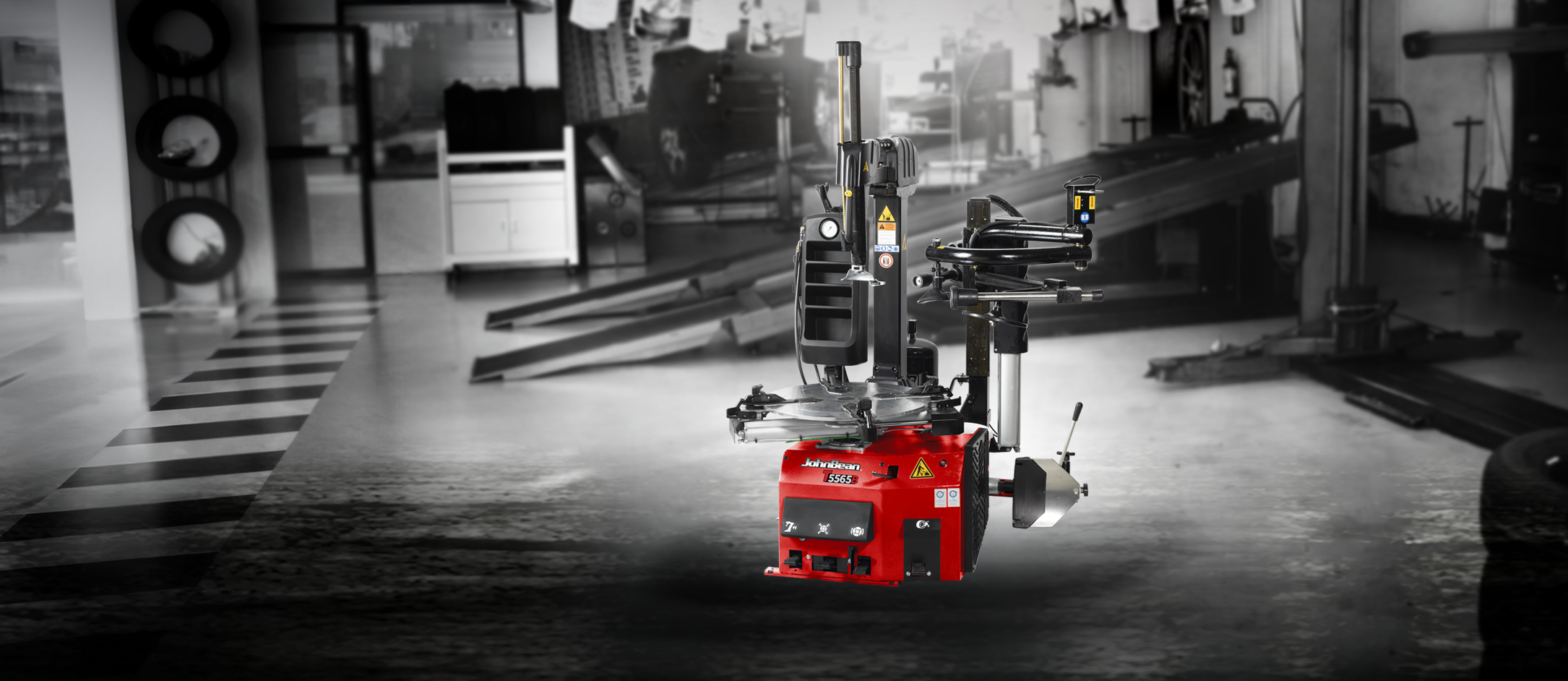

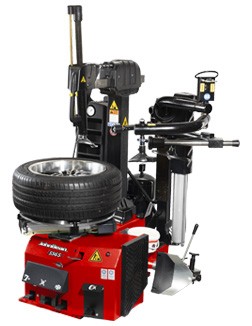

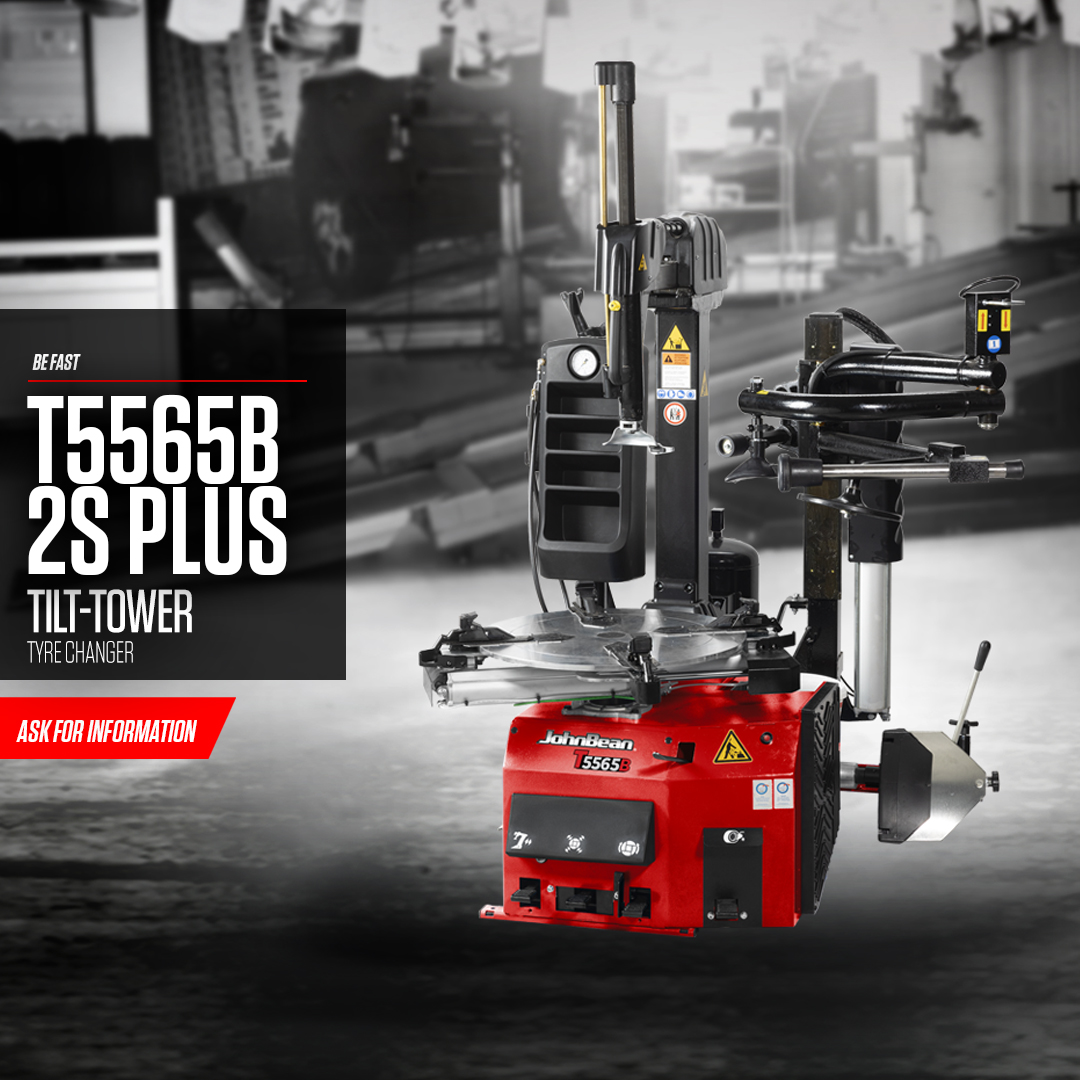

T5565B 2S Plus Tilt-Tower Tyre Changer

The John Bean T5565B 2S Plus is a premium tyre changer that accommodates a range of OE tyre fitments for passenger cars and light trucks, making it an ideal choice for diverse tyre service applications.

Delivering improved ergonomics, especially when working with wide tyres, the robust, industrial chassis is two inches lower than standard models.

Our patented PROspeed™ technology allows high-speed turntable rotation with precise speed control and high torque output, delivering safe, fast, and efficient operation.

The integrated MH 330 pneumatic bead assist optimises single-technician use when mounting and demounting run-flat, low-profile, and high-performance tyres.

With its user-focused design and advanced capabilities, the John Bean T5565B 2S Plus tyre changer delivers exceptional performance and reliability, ensuring precise and efficient tyre-changing.

Versions

T5565 2S Plus: This version does not include a bead seater.

T5565B 2S : This version does not include the plus accessories kit.

T5565 2S : This version does not include a bead seater, the plus accessories kit.

Features

MH 330 PRO

Comprised of a new bead pressing tool with lifting hook, hex roller, top roller, and lifting disk, the new MH 330 PRO streamlines the mounting and demounting of low-profile and high-performance tyres, enabling a single technician to perform tasks with ease.

Adjustable Clamping Jaws

Compact turntable for a smaller footprint with three-way adjustable, self-centring clamping jaws that accommodate a 10 to 26-inch rim diameter and a minimised cylinder stroke for faster clamping.

On-Floor Bead Breaker

The innovative self-adjusting technology provides the optimum torque and maximises the rotation speed for safe, efficient operation.

PROspeed™

The innovative self-adjusting technology provides the optimum torque and maximises the rotation speed for safe, efficient operation.

Low-Profile Cabinet

The lower cabinet height provides increased ergonomics when working with large wheels; the operator handles the bead lever at a lower height and is able to apply more force, reducing effort handling heavy tyres. The lower cabinet also makes it possible to increase the tyre changer capacity to 15-inch tyres instead of the 13-inch tyre width on a standard cabinet.

ADDITIONAL FEATURES

TILT-TOWER

The pneumatic Tilt-Tower post provides maximum clearance for installing the tyre on the turntable.

Flexion Guard

The tilt-tower provides high rigidity with a reinforced horizontal arm that prevents flexions of the system when working on run-flat and high-performance tyres.

New Pressing Tool

The updated MH 330 PRO pneumatic bead assist features a new pressing foot style optimised to prevent tool slippage that could damage tyres and wheels.

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

TOP-SIDE BEAD SEATER

A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.

“Plus” Configuration

Certified by WDK, the “Plus” models are equipped with Pneumatic Bead Assist and “Plus” Accessories Kit to enable correct mounting and demounting of UHP and run-flat tyres.

WDK CERTIFIED

Our tyre changers are approved and certified according to the strict and rigorous guidelines provided by the prestigious Wirtschaftsverband daer deutschen Kautschukindustrie e.V. (WDK), a German Rubber Manufacturers Association leading organisation of German manufacturers of tyres and technical elastomers.
