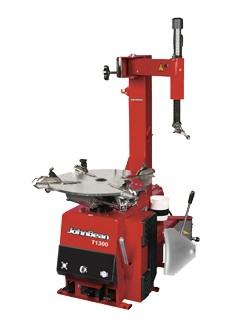

T1300B Swing-Arm Tyre Changer

Built to get the job done without taking up space, the T1300B utilises a proven design that includes the features you need to get the job done right.

The T1300B swing-arm design helps technicians perform core tyre-changing operations quickly and efficiently in a small footprint. An ergonomically positioned pedal operates the traditional side-shovel bead breaker that makes easy work of a variety of tyre types.

Self-centring jaws securely clamp the wheel with the proper setup range, and the highly effective top-side bead seater utilises compressed air to seat the tyre to the rim.

Ergonomic, simple to use, and remarkably productive; the T1300B is the swing arm tyre changer that gets the job done.

Versions

T1300 (EEWH568AE1): This version does not include a bead seater.

Features

SWING-ARM

The mounting arm swings to the side so that the machine can be installed in a space-saving way directly near a wall.

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tyres

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tyre to raise the bead and seal the tyre to the rim.

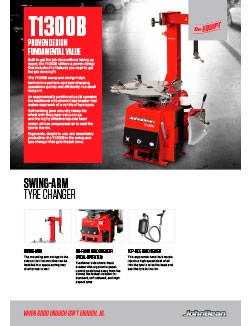

DOWNLOADS

TECH SPECS

Part Number

EEWH568AE5 – T1300B
EEWH568AE1 – T1300

Max Rim Diameter

22″ | 56cm

Max Tyre Width

13″ | 33cm

Max Rim Width

12″ | 31cm

Max Wheel Diameter

39.4″ | 100cm

Wheel Lift Capability

154 lbs. | 70 kg

Power Supply

400V 3ph 50Hz 5,5A

Air Pressure Required

116-174 PSI | 8-12 bar

Dimensions HxWxD

50″x68″x45″ | 125x173x115cm

ACCESSORIES

STANDARD

Wave Plus Tyre Lever
Plastic Protectors for Mounting Head

optional

Wheel Lift
Roller Board
Plastic Rim Protector
Plastic Tyre Protector
Smart Bead Spacer
Bead Clamp
Bead Breaker Blade for Off-Road Wheels
Bead Breaker Blade Protector
