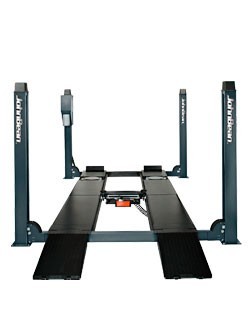

JLF 4000 Four-Post Alignment Lift

The John Bean® JLF 4000 Four-Post Lift provides a lifting capacity of 4,000 kilograms for wheel alignment of passenger cars, SUVs, transporters up to mid-size vans with a wheelbase range of 193-415cm.

Besides the wheel alignment application, the lift is also suited for service repairs as the technician has full access to all areas under the car. Perform brake service using the optional jack as well. Mechanical safety locks in the four posts prevent the platforms from suddenly dropping in case of hydraulic failure, ensuring operator safety.

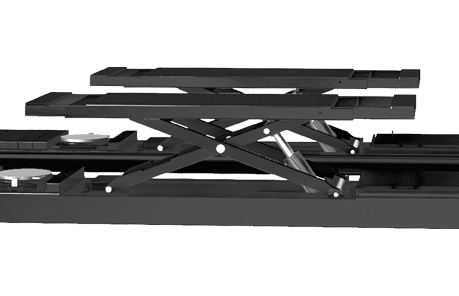

The WFL version brings all the trusted features and benefits of the current model while introducing a key enhancement: an integrated wheel-free lift. The wheel-free scissor lift has a platform length of 1.500mm with optional 200mm and 300mm extensions. It is perfect for tyre service tasks, eliminating the need for a jack (although one may still be used if desired).

Used with a John Bean 3D wheel aligner, the JLF 4000 Four-Post offers the perfect combination for wheel alignment service on nearly any vehicle.

Versions

JLF 4000 (EELS518A)

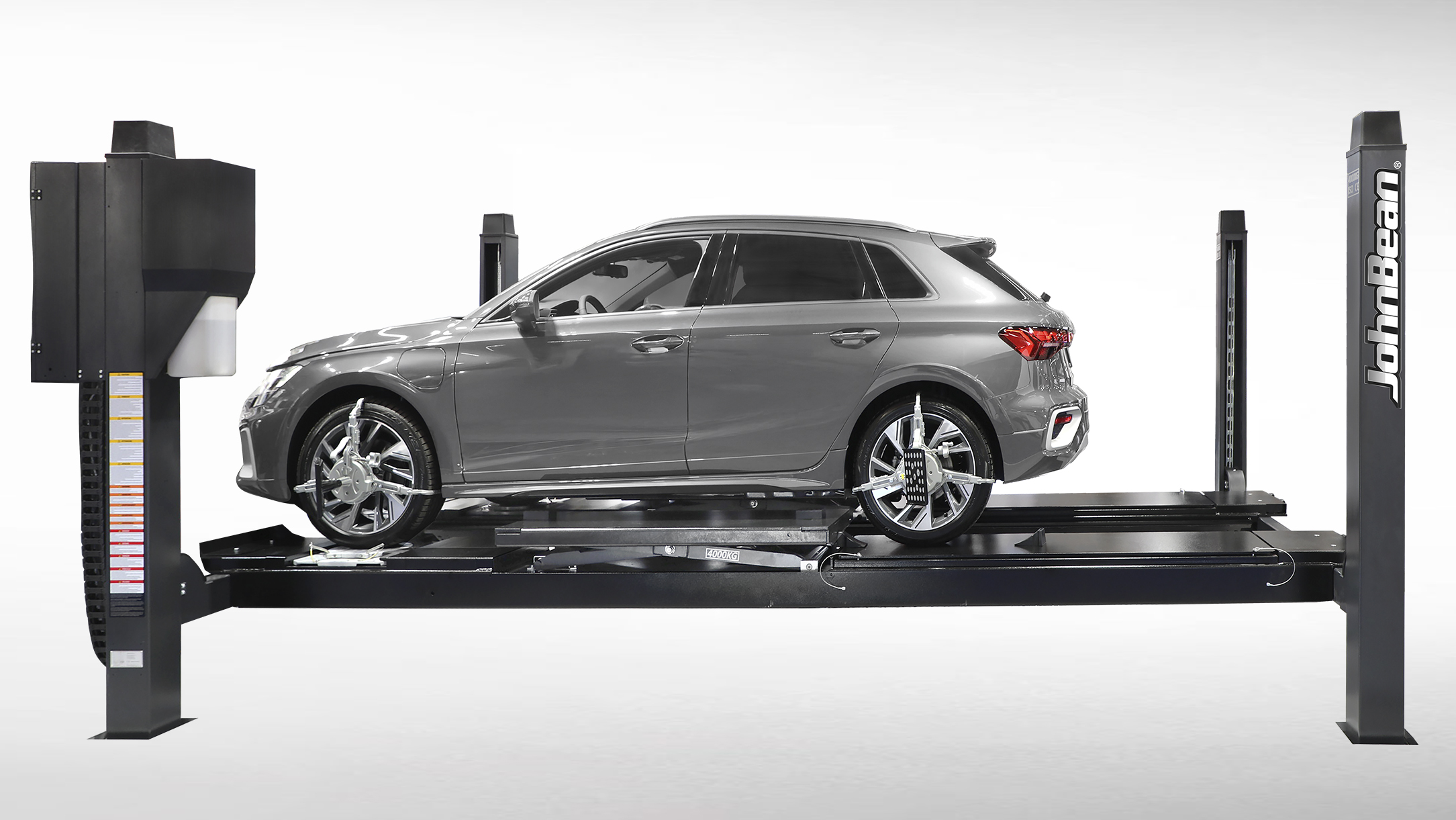

JLF 4000 WA WFL (EELS549A)
Integrated wheel-free lift

Features

RAMPS

The ramps extend to provide an additional 33cm on each side with easy lock/unlock and hinge down and away by 54 degrees to allow access to wheel service areas.

CONTROL UNIT

Simple and easy to understand, with emergency switch and comfort lowering, which allows the automatic release of the carriage from the safety lock when lowering the lift.

SAFETY LADDER

The lift is equipped with safety locks every 10cm to set the runways in the locked position for wheel alignment.

REAR SLIP PLATES

The integrated rear slip plates guarantee that a four-wheel alignment can be performed on all vehicles with wheelbases from 193-415cm. For best sliding performance, each slip plate has three sections with a total of 120 rollers.

ADDITIONAL FEATURES

CABLE SYSTEM

The rugged brass pulleys ensure the long life of the lift.

OPTIONAL JACK

The rolling jack increases versatility with a 3,000-kilogram lifting capacity for additional work, such as brake service.

OPTIONAL TURNTABLES

The turntables are perfectly integrated into the runways and can be placed in three different positions to support a wide range of wheelbases.

TECH SPECS

Part Number
EELS518A (JLF 4000)
EELS549A (JLF 4000 WA WFL)

Lifting Capacity
8,800 lbs. | 4,000 kg

Configuration
Closed Front

Overall Width
130″ | 331cm

Overall Height
92″ | 234cm

Max Lifting Height
72″ | 183cm

Lifting Time
60 Seconds

Rated capacity of the wheel-free lift
8,800 lbs. | 4,000 kg

Rising height of the wheel-free lift
18″ | 45cm

Power Requirements
380-400V 50 Hz 3Ph

Minimum Recommended Bay Size WxL
18’x31′ | 550x950cm

ACCESSORIES

OPTIONAL

Turntables
Jacking Beam
Drive-Over Ramps for Flush-Mount Installation
Turntables Covers
Rechargable Light Kit
