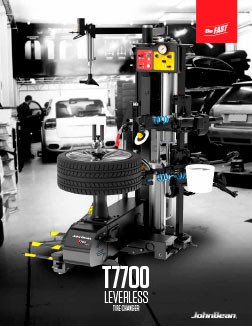

T7700 Leverless Tire Changer
Maximize shop productivity and work on a wide range of specialty, run-flat, low-profile, and high-performance tires with the John Bean® T7700 tire changer. Changing tires on modern vehicles that utilize low-profile or run-flat tires can be a challenge for shops that are not properly equipped, due to the potential for wheel damage.
The John Bean T7700 leverless tire changer provides a comprehensive set of tools that make changing a wide variety of tires quick and easy while minimizing the chance of wheel damage. Easily move tires into position with a pedal-operated wheel lift and secure the wheel with an innovative center post clamp that can accommodate a wide variety of wheels and tires.
The Dynamic Bead Breaker system utilizes two synchronized disks that adjust with pneumatic precision to practically eliminate wheel damage and make short work of removing ultra-high-performance and run-flat tires.
Our powerMONT™ tool makes mounting and demounting tires a snap. For high-volume and specialty shops, this is the ultimate productivity workhorse.
Features
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/POWERMONT™.jpg)
POWERMONT™
Our leverless mounting and demounting tool synchronizes with the dynamic bead breaker location for optimum positioning. Featuring upgraded steel and plastic protection to ensure long-term operation, this innovative system is a perfect tool for RFT, UHP, OEM’s and low-aspect-ratio tires.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/08/prospeed.png)
PROSPEED™
The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/DYNAMIC-BEAD-BREAKER.jpg)
DYNAMIC BEAD BREAKER
The precisely controlled synchronized dual-disk system accurately positions both the upper and lower beads while minimizing the chance of wheel damage. Includes an adjustable tilt for tires with stiff sidewall.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/CONTROL-PANEL-7700.jpg)
CONTROL PANEL
The color-coded control panel is simple to use with tool-matching operation controls.
ADDITIONAL FEATURES
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/PNEUMATIC-WHEEL-LIFT.jpg)
PNEUMATIC WHEEL LIFT
The pedal-operated pneumatic wheel lift assists in lifting heavy wheels to reduce technician fatigue and increase productivity.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/PNEUMATIC-BEAD-PUSHER.jpg)
PNEUMATIC BEAD PUSHER
The Pneumatic Bead Pusher assists in the mounting process of the upper bead. Its dual-purpose design offers a reverse-side hook to help lift heavy tires.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/TOP-SIDE-BEAD-SEATER.jpg)
TOP-SIDE BEAD SEATER
This ergonomic hand-held nozzle injects a high-speed blast of air into the tire to raise the bead and seat the tire to the rim.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/CENTER-POST-CLAMP.jpg)
CENTER POST CLAMP
The center-post clamp design has numerous benefits, most important is the drastically reduced risk of wheel damage and less clamping restriction than the turntable design.
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/T7700-action-pic.jpg)
TECH SPECS
Part Number
EEWH574AUA
Max Rim Diameter
30″ | 76cm
Max Tire Width
15″ | 38cm
Max Rim Width
13″ | 33cm
Max Wheel Diameter
47″ | 119cm
Wheel Lift Capability
154 lbs. | 70 kg
Power Supply
230V 1ph 50-60Hz 16A
Air Pressure Required
116-174 PSI | 8-12 bar
Dimensions HxWxD
75″x63″x78″ | 190x160x198cm
ACCESSORIES
STANDARD
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Smart-Bead-Spacer.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Plastic-Rim-Protector.jpg)
![](https://www.johnbean.com/us/wp-content/uploads/2022/08/Bead-Breaker-Tool-1.png)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Lube-Bucket.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Lube-Brush.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Bead-Clamp.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Reduction-Cones.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Cone-Kit.jpg)
![](https://www.johnbean.com/us/wp-content/uploads/2022/08/PowerMont-Tool-Protectors.png)
optional
![](https://www.johnbean.com/us/wp-content/uploads/2022/08/Tool-Storage-T7800-T7700.png)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Universal-Reverse-Mount-Wheel-Kit.jpg)
![](https://www.johnbean.com/la-en/wp-content/uploads/2022/01/Light-Truck-Wheel-Kit.jpg)
![](https://www.johnbean.com/us/wp-content/uploads/2022/08/19mm-Cylindrical-Pins.png)
